Profiles

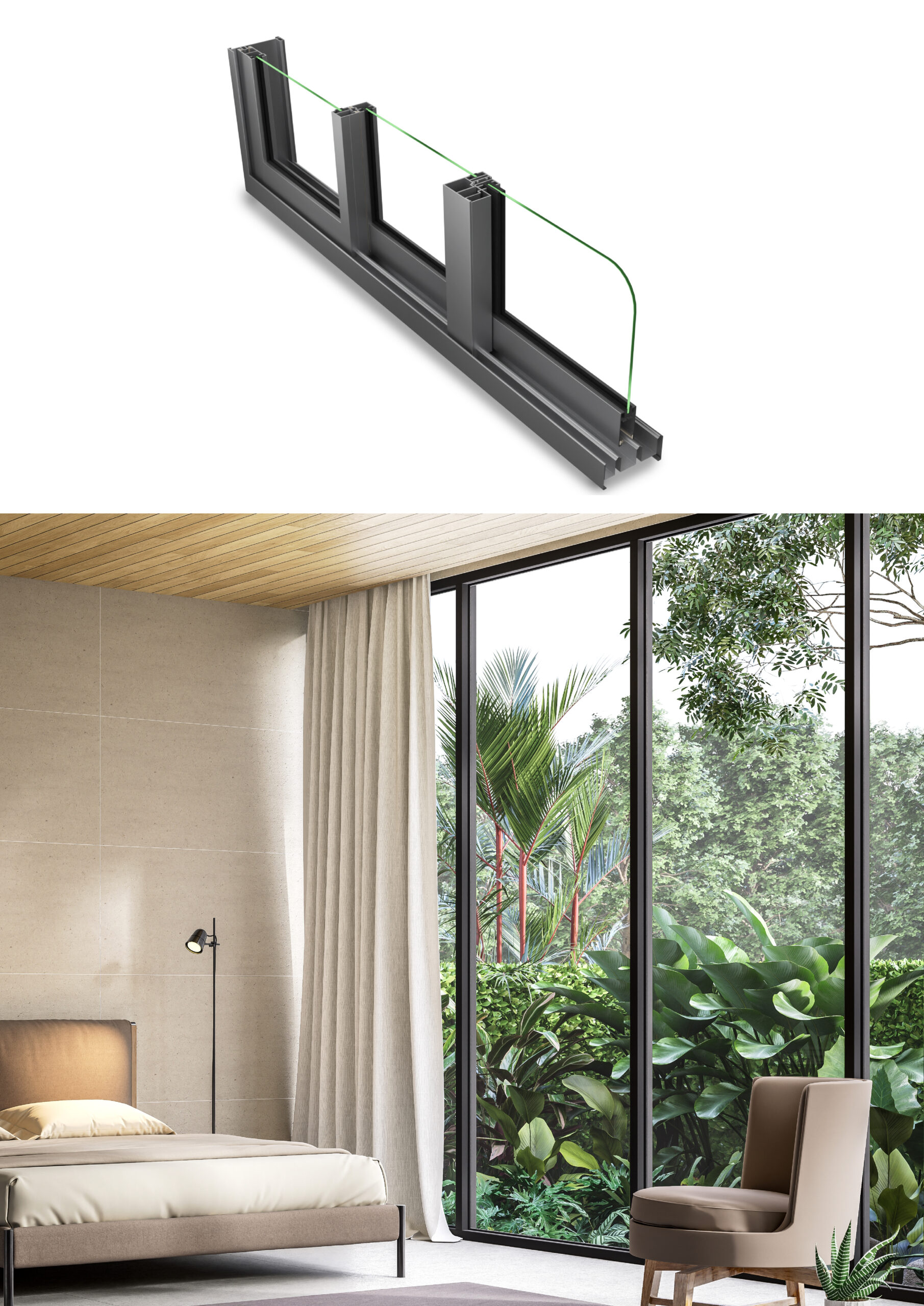

Aluminium Alloy 6063-T6 Grade Shutter Sections 25 X 50 mm
Shutter Size Maximum W-1500 X H-2100 Track Sections 2/3/4 Track
Duct at the Bottom of the Track to Drain Out Rainwater

Maintenance
Track – Easy to Clean

Vibration
Rollers of Needle Bearings with Polyamide Nylon Casing for Smooth & Silent Sliding

Weather
Silicon Base Weather Strips which Restrict Dust, Sound & Rain from Entering in

Glazing
Single Glass 4/5/6/8/10 mm
Double Glass 18 mm (4+10+4), 18 mm (5+8+5),
Laminated 4+1.5+4, Laminated 5+1.5+5 Glass Sealing High Quality EPDM

Option
Fly Mesh S.S. / Aluminium with S.S. Finish / Georgian Bar / MS Grill

Security
Lock Self Pressing / Manual /
Handle Locks / Key Lock / Child Lock

Specifications
Wind Resistance 2200 Pa
Sound Reduction 35 dB (DGU 18 mm)

Finishing
Coating – Powder Coated/ Anodized / Wooden Finish

Colours
# All RAL Colour Shades Available
